Multi-Outcome Markets

At a Glance

What This Section Does

Manage multi-outcome prediction markets where one parent event contains multiple child outcome markets. Create parent events with multiple outcomes, review submissions, approve quality events, publish them live, and determine final outcomes when events close.

Who Should Use This

1. Market Managers: Create and oversee multi-outcome events
2. Senior Admins: Approve and publish multi-outcome events
3. Quality Reviewers: Review event quality before approval

Most Common Tasks

1. Create a New Multi-Outcome Event: Set up parent event with multiple outcome markets
2. Approve an Event: Review and approve submissions
3. Publish an Event: Make events live for trading
4. Resolve an Event: Determine final outcome among multiple possibilities
5. Manage Child Markets: View and manage individual outcome markets within an event

Before You Start

Make sure you have these permissions:

1. admin_market: Required for all admin market operations.
2. market_multiple_outcome: Required for admin to manage multiple outcomes.
3. Whitelist: "Create & Approve Markets": Required to create and publish.
4. Whitelist: "Resolve & Approve Resolution": Required to determine outcomes.

Overview

What It Is

A Multi-Outcome Market (Parent) is a prediction market structure where one parent event contains multiple child outcome markets. Unlike binary markets that have only Yes/No outcomes, multi-outcome markets allow traders to bet on one of several possible outcomes. The parent event defines the question, rules, and metadata shared by all child markets, while each child market represents a distinct possible outcome.

Example: "Ullamco cumque volup" (Parent Event)

1. Child Market 1: "Keefe Mckee"
2. Child Market 2: "Dakota Villarreal"
3. Child Market 3: "Ariel Woods"

Why It Exists

Multi-outcome markets exist to enable more complex prediction scenarios that cannot be adequately represented by binary Yes/No questions. They provide flexibility for events with multiple mutually exclusive outcomes, allowing traders to express more nuanced views on complex questions.

When Admins Use It

Admins use multi-outcome markets when:

1. Events have multiple distinct, mutually exclusive possible outcomes
2. They need to manage complex questions that require more than two options
3. They want to provide traders with multiple betting options within a single event framework
4. Events require structured outcome definitions (e.g., elections, sports tournaments, awards)

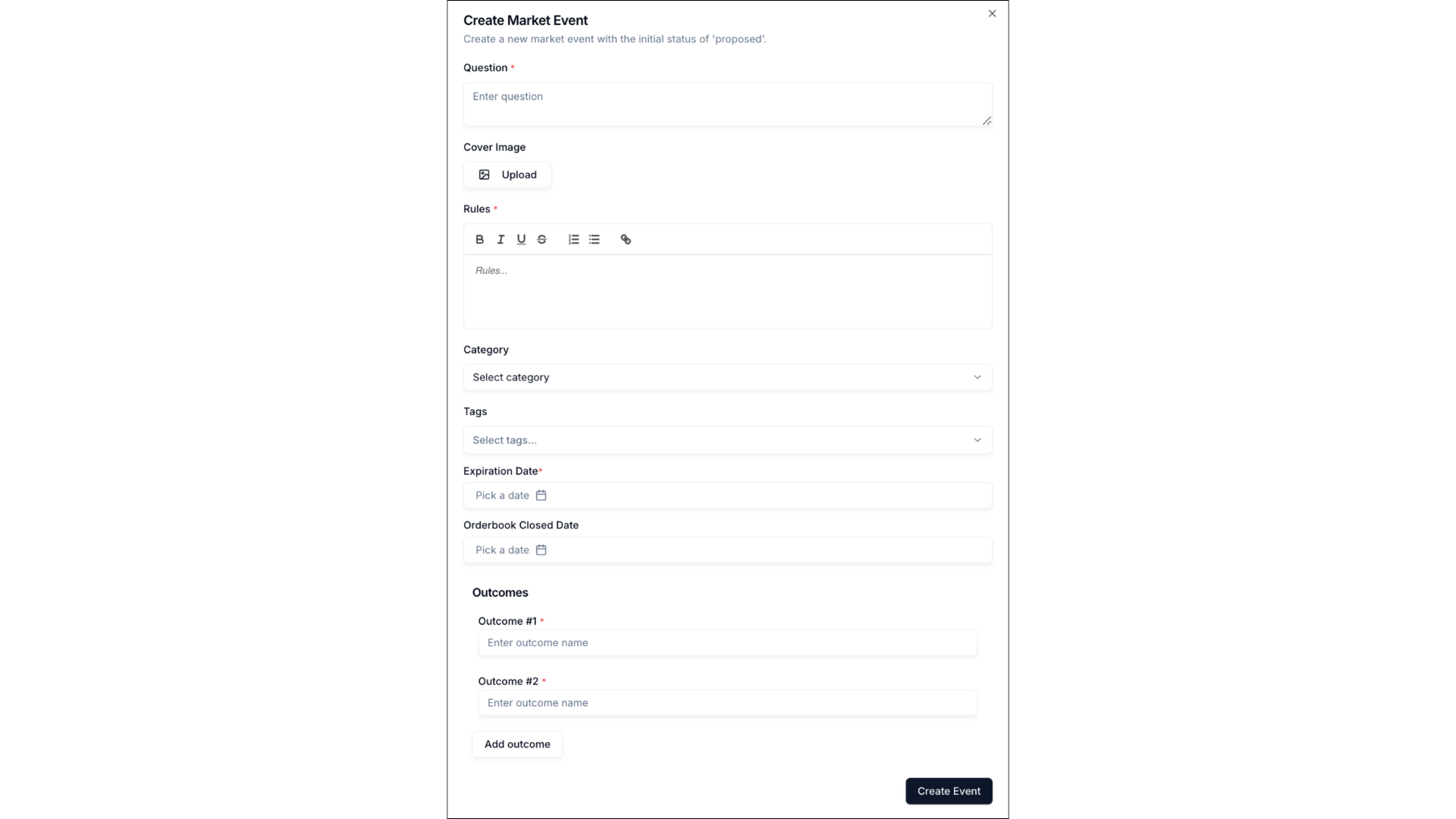

1. Parent Event Fields

The parent event contains the following key fields visible on the Multi-Outcome Markets list page and detail pages:

Field	Description	Required	Location
Question	The main event question that defines what is being predicted	Yes	Creation form, detail page
Cover Image	Visual thumbnail representing the event	No	Creation form, list table
Rules	Resolution rules defining how and when the event will be resolved (supports rich text formatting: bold, italic, underline, strikethrough, ordered lists, bullet lists, links)	Yes	Creation form, detail page
Category	Primary classification (Tech, Crypto, E-Sports, Trending, Sport, Politics, Entertainment, Economy, Culture)	Yes	Creation form, list table, detail page
Tags	Secondary labels for categorization and discovery	No	Creation form, list table
Expiration Date	Date and time when trading closes for all child markets	Yes	Creation form, list table, detail page
Orderbook Closed Date	Optional date when orderbook stops accepting new orders	No	Creation form
Outcomes	List of outcome names that become child markets (minimum 2 required)	Yes	Creation form

Parent Event Fields

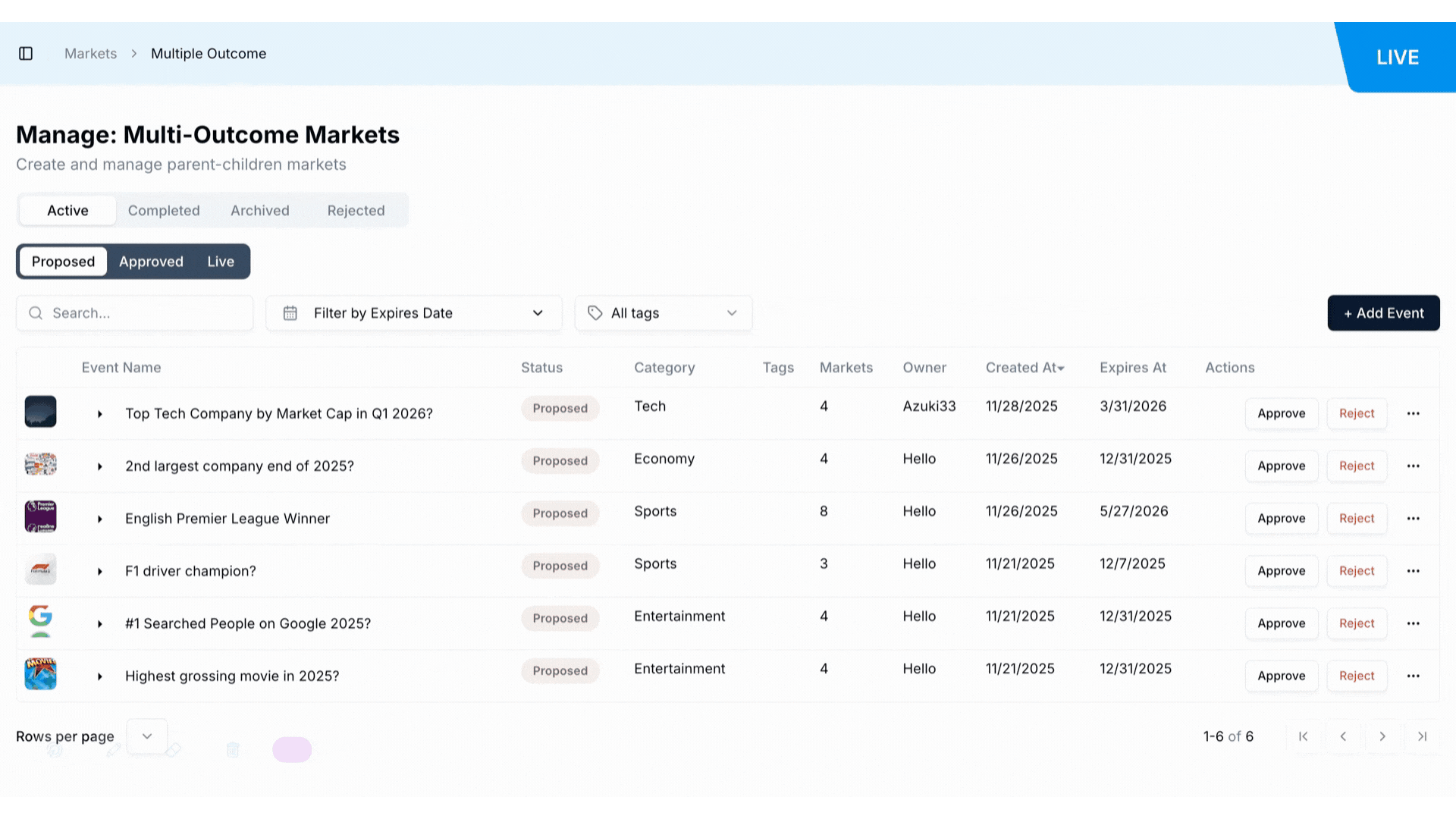

2. Parent Event Table Columns

Column	Description
Cover Image	Thumbnail image representing the parent event. Helps users visually identify the event quickly.
Event Name	Clickable event title (e.g., “Ullamco cumque volup”). Includes a Toggle outcomes button to expand/collapse all child markets under this parent.
Status	Current status of the parent event: Proposed Approved Live Closed Resolution Proposed Resolved Rejected Archived
Category	Primary classification for the event (e.g., “Tech”, “Politics”, “Esports”).
Tags	Associated tags displayed inline. Can be empty. Helps filter and categorize events.
Markets	Total number of child markets/outcomes under the parent (e.g., 3).
Owner	Username of the creator (e.g., PEPESURFING). Clickable to open user profile.
Created At	Timestamp when the event was created (e.g., 12/1/2025). Sortable column (▾ indicator).
Expires At	Parent-level expiration date and time (e.g., 12/2/2025 00:00).
Actions	Quick action buttons depending on status: Approve: Visible when status = Proposed Reject: Visible when status = Proposed or Approved Publish: Visible when status = Approved Row Actions (three-dots menu): Preview (open user-facing market) Edit (modify event details) Archive (move event to archived state)

3. Child Markets Table Columns

Column	Description
Outcome	Child market name (e.g., “Keefe Mckee”, “Dakota Villarreal”, “Ariel Woods”). Clickable link → opens the child market detail page.
Status	Current status of the child market. Examples: Proposed Approved Live Closed Resolved Rejected
Resolution Outcome	Displays: “-” → before resolution Final outcome name → after resolution is completed.
Liquidity	Available liquidity for this specific child market (e.g., 0). Aggregated independently per outcome.
Volume	Total trading volume for this child market (e.g., 0).
Owner	Username of the market creator (e.g., PEPESURFING).
Expires At	Expiration timestamp for the child market (usually inherited from parent). Example: 02/12/2025 00:00
Last Updated At	Timestamp of the most recent update on this child market. Example: 01/12/2025 15:05
Actions	Quick actions available per child market: Reject: available when child is in “Proposed” or “Approved” Publish: appears when child is Approved Row actions (three-dots button): Additional management actions.

Child Markets Table Columns

4. Child Outcome Markets

Each outcome specified in the parent event becomes a separate child market with the following characteristics:

Column	Description
Shared Attributes	All child markets share the parent's expiration date, category, tags, and resolution rules.
Individual Identity	Each child has its own market name (outcome name), Market ID, and trading activity.
Market Name Format	Combines parent name with outcome name: "Ullamco cumque volup - Keefe Mckee".
Mutually Exclusive	Only one child market can be the winning outcome when resolved.
Status Synchronization	Child markets move together through status changes (Proposed → Approved → Live).
Independent Trading	Each child market can be traded independently, with its own orderbook and pricing.

Status Definitions

The parent event and its child markets share the following status lifecycle:

Status	Tab Location	Description	Available Actions
Proposed	Active > Proposed	Initial state after creation, awaiting admin review	Approve, Reject, Edit item
Approved	Active > Approved	Reviewed and approved, ready for publishing	Publish, Reject, Edit item
Live	Active > Live	Published and actively trading on the platform	Propose Resolution, Edit item
Closed	Completed > Closed	Trading period has ended, awaiting resolution	Propose Resolution, Edit item
Resolution Proposed	Completed > Resolution Proposed	Outcome proposed, awaiting final confirmation	Resolve, Edit item
Resolved	Completed > Resolved	Final outcome confirmed, payouts processed	View Orders
Rejected	Rejected	Did not meet quality standards	View Orders
Archived	Archived	Removed from active display	Edit item

5. Parent-Level Tasks

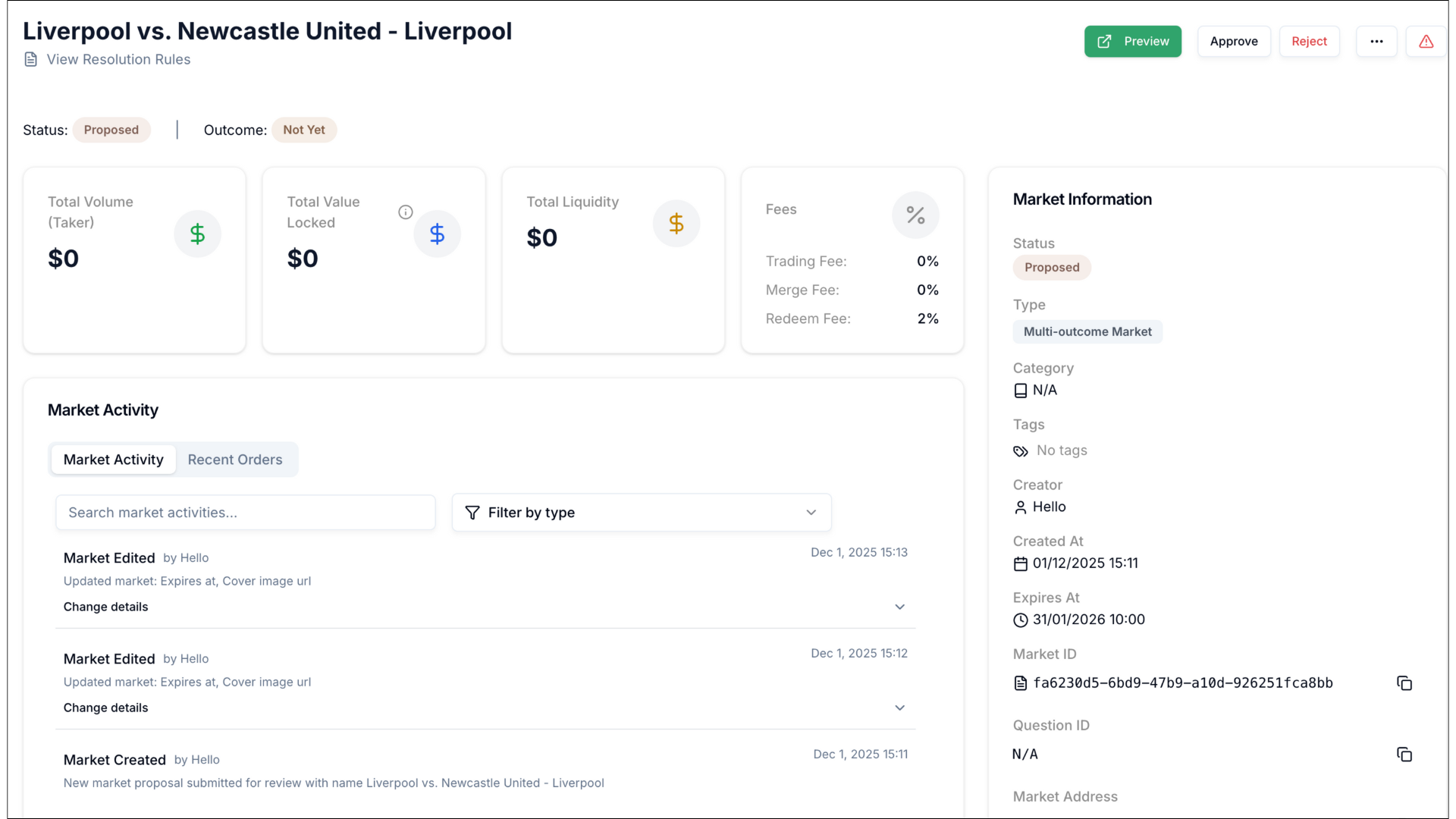

Review Parent

Purpose: Examine parent event details to assess quality, completeness, and compliance before approval.

When to Use: When events appear in the Active > Proposed tab requiring review.

Steps

Step	Action	Description
1	Navigate to module	Go to Markets → Multi-Outcome Markets from the main navigation.
2	Select correct tab	Choose Active → Proposed to see all proposed multi-outcome events.
3	Review parent event (list view)	Check the parent event row for: Event Name: full parent title Status: should display “Proposed” Category: e.g., “Tech” Tags: associated tags (if any) Markets: number of child markets (e.g., 3) Owner: creator username (clickable link to profile) Created At: timestamp of event creation Expires At: parent event expiration date/time
4	Expand child outcomes	Click dropdown button to reveal all child outcome markets.
5	Review child outcomes	For each child market, check: Outcome name Status (e.g., Proposed) Liquidity Volume Expires At Last Updated At
6	Review event title	Confirm Event Title is correct and matches creator submission.
7	Check status & outcome display	Verify the Event Status and any Outcome Display information.
8	Check expiration countdown	If expiring within 24 hours, ensure the Expiring Soon Timer appears (e.g., “09 hours : 02 minutes : 36 seconds”).
9	Review trading metrics	Check aggregated metrics across all child markets: Total Volume (Taker) (USD) Total Value Locked Total Liquidity
10	Review fee configuration	Ensure Fees are displayed correctly: Trading Fee Merge Fee Redeem Fee Example: Trading Fee: 0% Merge Fee: 0% Redeem Fee: 2%
11	Check Market Activity tab	Review audit logs such as “Market Created” showing creator and timestamp.
12	Check Recent Orders tab	View recent trades across all associated child markets.
13	Review Market Information panel	Verify critical metadata: Status Type = “Multi-outcome Market” Category Tags Creator (clickable link) Created At Expires At Market ID Question ID Market Address Question Market Address Condition ID Presale Address ID Panda Score Match ID
14	Review action buttons	Ensure available admin actions are visible: Approve Reject More-options menu
15	View resolution rules	Click View Resolution Rules to review detailed resolution logic/criteria.
16	Preview Child market	Click Preview to open the public-facing version of the Child market in a new tab.

Key Notes:

1. Review resolution rules carefully to ensure they are objective and clear.
2. Verify that all outcomes are distinct and mutually exclusive.
3. Check that the expiration date provides adequate time for the outcome to be determined.
4. Use Preview to verify the event displays correctly to users.
5. When viewing child markets via Toggle outcomes, each child shows its individual status, liquidity, volume, and timestamps.

6. Approve a Parent

Purpose: Approve parent events that meet quality standards and make them ready for publishing.

When to Use: After reviewing a proposed event and confirming it meets all quality standards.

Steps

Step	Action	Details
1	Navigate to tab	Go to Active → Proposed to view all proposed parent events.
2	Locate parent event	Find the event you want to approve in the table.
3	(Optional) Expand child markets	Click Toggle outcomes button to display all child markets and review their details.
4	Review event details	Ensure the event meets quality and compliance standards: Verify event name, category, tags. Confirm expiration time provides sufficient trading window. Ensure all child outcomes are correctly created and complete.
5	Approve parent event	Click Approve in the Actions column of the parent event row.
6	Confirm approval	A confirmation dialog appears → click Confirm.

Steps of Approving a parent event

Outcome:

After approval:

1. Parent event status changes from “Proposed” → “Approved”

2. Page auto-switches to Active → Approved tab

3. All child markets auto-approve simultaneously

4. Child statuses update: “Proposed” → “Approved”

5. All child Last Updated At timestamps refresh

6. Success notification appears: “Market approved successfully”

7. Action buttons update → Publish now replaces Approve

8. All child markets receive blockchain identifiers:

   1. Question ID
   2. Market Address
   3. Question Market Address
   4. Condition ID

   These were previously N/A in Proposed status.

Key Notes:

1. Approving a parent event automatically approves ALL child markets.
2. Approved events remain in Approved status until manually published.
3. Approval can be reversed by rejecting the event.
4. Verify resolution criteria are objective before approving.
5. After approval, child markets have blockchain addresses assigned (visible on child market detail pages).
6. The system automatically synchronizes status across parent and all children.
7. After approval, verify status changes by checking the event has moved to the Approved tab and all child markets show Approved status when expanded.

7. Reject a Parent

Purpose: Reject events that do not meet quality standards or violate platform policies.

When to Use: When an event fails to meet quality standards, has unclear rules, or violates platform policies.

Steps

Step	Action	Details
1	Navigate to event	Go to any Active tab (e.g., Proposed, Approved) and locate the parent event you want to reject.
2	Click Reject	Click the Reject button.
3	Confirm rejection	A rejection confirmation dialog appears → click Confirm to proceed.
4	Provide reason	Enter the explanation before confirming.

Outcome: The event status changes to "Rejected", and it moves to the Rejected tab. All child markets are also rejected.

Key Notes:

1. Rejecting a parent event rejects all associated child markets.
2. Rejected events can be reviewed later but are removed from active circulation.
3. Provide clear feedback when rejecting to help improve future submissions.
4. After rejection, verify the event has moved to the Rejected tab and all child markets are also rejected.

8. Edit a Parent

Purpose: Modify parent event details such as question, rules, category, tags, expiration date, or outcomes.

When to Use: When changes are needed to improve event quality or correct errors.

Steps

Step	Action	Details
1	Navigate to list	Go to the Multi-Outcome Markets list page.
2	Locate parent event	Find the parent event you want to edit in the table.
3	Open row actions	Click the Row actions button (three-dots ) in the Actions column.
4	Select Edit	From the dropdown menu, select Edit to open the event editor.
5	Update event fields	Modify any of the following fields: Question: edit the main event question text Cover Image: upload/change the cover image Rules: update resolution rules using rich text (bold, italic, underline, strikethrough, lists, links) Category: change the primary event category Tags: add or remove associated tags Expiration Date: adjust when trading closes Orderbook Closed Date: adjust when orderbook stops accepting new orders. Outcomes: add new outcomes, delete outcomes, or edit existing outcome names
6	Save changes	Click Save to apply modifications.

Available Menu Actions

Menu Action	Description	Notes
Edit Market	Opens the child market editor to modify event details such as question, image, rules, category, tags, expiration, and outcomes.	Available when the child market is not archived or fully resolved.
View Orders	Opens a new tab showing all orders across a child outcome market, including historical activity.	Useful for liquidity review and trade auditing.
Create Orders	Allows admins to manually place buy/sell orders to provide liquidity or correct child market imbalance.	Typically available only to roles with liquidity management permissions.
Fee Settings	Configure Trading Fee, Merge Fee, Redeem Fee, or other adjustable fee parameters.	May be disabled for events in certain statuses (e.g., Live, Resolved).
View Disputes	Shows any disputes submitted by users regarding event resolution and data accuracy.	Appears only when disputes exist.

Key Notes:

1. Some fields may have restrictions on editing depending on child market status.
2. Editing a parent event may affect all child markets.
3. Changes to outcomes may require recreating child markets.

Steps

Step	Action	Details
1	Navigate to the detail page	Click child market name from list.
2	View Metrics	View metrics in the header section (Total Volume, Total Value Locked, Total Liquidity, Fees).
3	View Market Activity	Click Market Activity tab to see audit logs (shows "Market Created" entries with creator, timestamp, and description).
4	View Recent Orders	Click Recent Orders tab to see recent trading activity.

Key Notes:

1. Market Activity shows complete history of all child markets changes.
2. Recent Orders displays orders from all child markets.
3. For new markets, metrics typically show "$0" for volume, value locked, and liquidity.

9. Child-Level Tasks

Each child outcome market within a parent event can be managed individually. Child markets represent specific possible outcomes (e.g., "Keefe Mckee", "Dakota Villarreal", "Ariel Woods" for the "Ullamco cumque volup" parent event).

What the Child Represents

A child market represents one specific possible outcome within the parent event. For example:

1. Parent Event: "Ullamco cumque volup"
2. Child Market 1: "Keefe Mckee" represents one possible outcome
3. Child Market 2: "Dakota Villarreal" represents another possible outcome
4. Child Market 3: "Ariel Woods" represents a third possible outcome

Each child market:

1. Is a separate, tradable market with its own orderbook.
2. Has a market name combining parent and outcome: "Ullamco cumque volup - Keefe Mckee".
3. Shares the parent's expiration date, category, tags, and resolution rules.
4. Moves through status changes together with the parent and other children.
5. Can only be the winning outcome if it actually occurs when the event resolves.

10. Child Markets Fields

Purpose: Examine individual child market details and status.

When to Use: When you need to check the status, trading activity, or details of a specific child market.

Steps

Step	Action	Details
1	Go to the parent event	Navigate to the parent event list page
2	Locate The Parent	Locate the parent event and click the Toggle outcomes button to expand child markets
3	Review Child Market	Review child market information in the expanded table: Outcome: Child market name (e.g., "Keefe Mckee") Status: Current status (e.g., "Proposed") Resolution Outcome: Shows "-" when not resolved yet Liquidity: Available liquidity (e.g., "0") Volume: Trading volume (e.g., "0") Owner: Creator username (e.g., "PEPESURFING") Expires At: Expiration date and time (e.g., "02/12/2025 00:00") Last Updated At: Last modification timestamp (e.g., "01/12/2025 14:54")
4	Click on a child market name to view its detail page	Review child market detail page information: Market Name: The outcome name combined with parent (e.g., "Ullamco cumque volup - Keefe Mckee") Status: Current status displayed (e.g., "Status: Proposed | Outcome: Not yet") Expiring Soon Timer: If expiring within 24 hours, shows countdown (e.g., "09 hours : 02 minutes : 36 seconds") Total Volume (Taker): Trading volume for this specific outcome (e.g., "$0") Total Value Locked: Value locked for this outcome (e.g., "$0") Total Liquidity: Available liquidity for this outcome (e.g., "$0") Fees: Trading Fee, Merge Fee, Redeem Fee percentages Market Activity Tab: Shows audit logs (e.g., "Market Created" with creator, timestamp, description) Recent Orders Tab: Shows trading activity for this outcome Market Information Panel: Status, Type ("Multi-outcome Market"), Category, Tags, Creator (clickable link), Created At, Expires At, Market ID, Question ID, Market Address, Question Market Address, Condition ID, Presale Address ID, Panda Score Match ID Action Buttons: Approve, Reject, menu buttons View Resolution Rules: Link to review resolution criteria Preview: Button to see public-facing view Back to Markets: Button to return to Multi-Outcome Markets list

Key Notes:

1. Each child has its own Market ID and trading statistics.
2. Child markets can be accessed via URL pattern: /admin/markets/{parent-name}---{outcome-name}

11. Approve a Child market

Purpose: Approve individual child markets (though typically done at parent level).

When to Use: Child markets are usually approved automatically when the parent is approved. Individual approval may be needed in special cases.

Steps

Step	Action	Details
1	Navigate to the child market detail page	Click child market name from expanded parent.
2	View Quality Standards	Verify the child market meets quality standards
3	Approve Child Market	Click the Approve button on the child market detail page
4	Click Confirm	Confirm the approval in the confirmation dialog

Key Notes:

1. CRITICAL: Approving the parent event automatically approves ALL child markets simultaneously - this is a cascading action that cannot be done individually
2. Individual child approval is NOT available as a separate action - approval happens at the parent level
3. When parent is approved, all children immediately:
   1. Change status from "Proposed" to "Approved".
   2. Receive blockchain addresses (Question ID, Market Address, Question Market Address, Condition ID).
   3. Update "Last Updated At" timestamp to reflect approval time.
   4. Change action buttons from "Approve" to "Publish".
4. The system automatically switches to the "Approved" tab after parent approval.
5. A success notification appears: "Market approved successfully".
6. After approval, verify status changes by checking the event has moved to the Approved tab and all child markets show Approved status when expanded.

12. Reject a Child market

Purpose: Reject individual child markets (though typically done at parent level).

When to Use: When a specific child market has issues that require rejection without rejecting the entire parent.

Steps

Step	Action	Details
1	Expand parent and locate child in table.	Navigate to the child market detail page.
2	Verify status	Verify the child market should be rejected.
3	Click Reject	Click the Reject button (available on detail page or in expanded child table).
4	Confirm the rejection	Confirm the rejection in the confirmation dialog.

Key Notes:

1. Rejecting the parent rejects all children.
2. Individual child rejection may require parent event adjustment.
3. After rejection, verify the child market status updates and parent may be affected.

13. Edit a Child market

Purpose: Modify child market details such as outcome name.

When to Use: When corrections are needed to a specific outcome market.

Steps

Step	Action	Details
1	Navigate to child market	Open the child market detail page from the parent view or child table link.
2	Open menu	Click the first Open menu button (three-dots button) on the child market detail page.
3	Select Edit Market	From the dropdown menu, choose Edit Market to access editable fields.
4	Make updates	Modify allowed fields (note: child markets may have limited editable fields depending on status).
5	Save changes	Click Save to apply updates.

Available Menu Actions ( button):

1. Edit Market: Modify event details.
2. View Orders: See all orders for this child market (opens in new tab).
3. Create Orders: Place admin orders to provide liquidity.
4. Fee Settings: Adjust fee percentages (may be disabled for certain statuses).
5. View Disputes: Review any disputes raised by users.

Key Notes:

1. Some fields are inherited from parent and must be edited at parent level.
2. Editing a child market changes will be reflected in the Market Activity audit log.

14. How It Affects the Parent

Child market actions affect the parent event as follows:

Child Action	Parent Impact
Child Status Changes	Parent status may need to sync with children
Child Approval	Parent can only publish when all children are approved
Child Rejection	May prevent parent from publishing until resolved
Child Trading Activity	Contributes to parent's Total Volume and metrics
Child Resolution	Only one child can win; determines parent's final outcome

Key Notes:

1. When viewing parent metrics, all child market data is aggregated together.

Additional Common Questions

Q: Can I edit outcomes after creating the event? A: Yes, but editing outcomes may require recreating child markets. Edit carefully as this can affect existing child markets. Use the Edit function and modify outcomes in the Outcomes section.

Q: What happens if I reject a parent event? A: Rejecting a parent event automatically rejects all child markets. They move to the Rejected tab and are no longer active. Verify by checking the Rejected tab and expanding to see all rejected children.

Q: Can I approve individual child markets separately? A: Typically, child markets are approved automatically when the parent is approved. Individual approval may be available on child market detail pages, but the standard workflow is to approve at the parent level.

Q: How do I know which child market won? A: Review the resolution rules, check actual event outcome, and select the child market that represents what actually occurred. Only one child can be the winner.

Q: What if multiple outcomes seem to have occurred? A: Only one child market can win. Review resolution rules carefully to determine the primary outcome. If outcomes are truly tied, consider using resolution with payout ratio (if available).

Q: Can I change a child market's outcome name? A: Outcome names can typically be edited via Edit Market, but this may affect existing references. Edit with caution and verify child markets update correctly.

Q: How do child markets appear to traders? A: Traders see the parent event question with all child markets as separate betting options, each with its own price and orderbook. Use the Preview button to see the public-facing view.

Q: How do I access a specific child market? A: You can access child markets by:

1. Expanding parent via Toggle outcomes and clicking child market name.
2. Navigating directly to URL: /admin/markets/{parent-name}---{child-name}
3. Using the child market detail page link.

Q: What information is shown in the child market expanded table? A: When you expand via Toggle outcomes, you see: Outcome name, Status, Resolution Outcome, Liquidity, Volume, Owner, Expires At, Last Updated At, and Actions (Reject, Row actions).

Conclusion

Multi-Outcome Markets provide a powerful way to create prediction markets with multiple possible outcomes. By following this guide, you can effectively create, manage, and resolve multi-outcome events, ensuring quality and fairness throughout the event lifecycle.

Remember to:

1. Create clear, unambiguous event questions with comprehensive resolution rules.
2. Define mutually exclusive outcomes that cover all possible scenarios (minimum 2 required).
3. Review events thoroughly before approval and publishing using Toggle outcomes to verify all children.
4. Base resolutions strictly on defined criteria.
5. Monitor events regularly and address issues promptly.
6. Use Preview to verify public-facing appearance.
7. Check Market Activity logs to track all changes.

For additional support or questions, refer to the Xmarket platform documentation or contact your administrator.
